Product Information

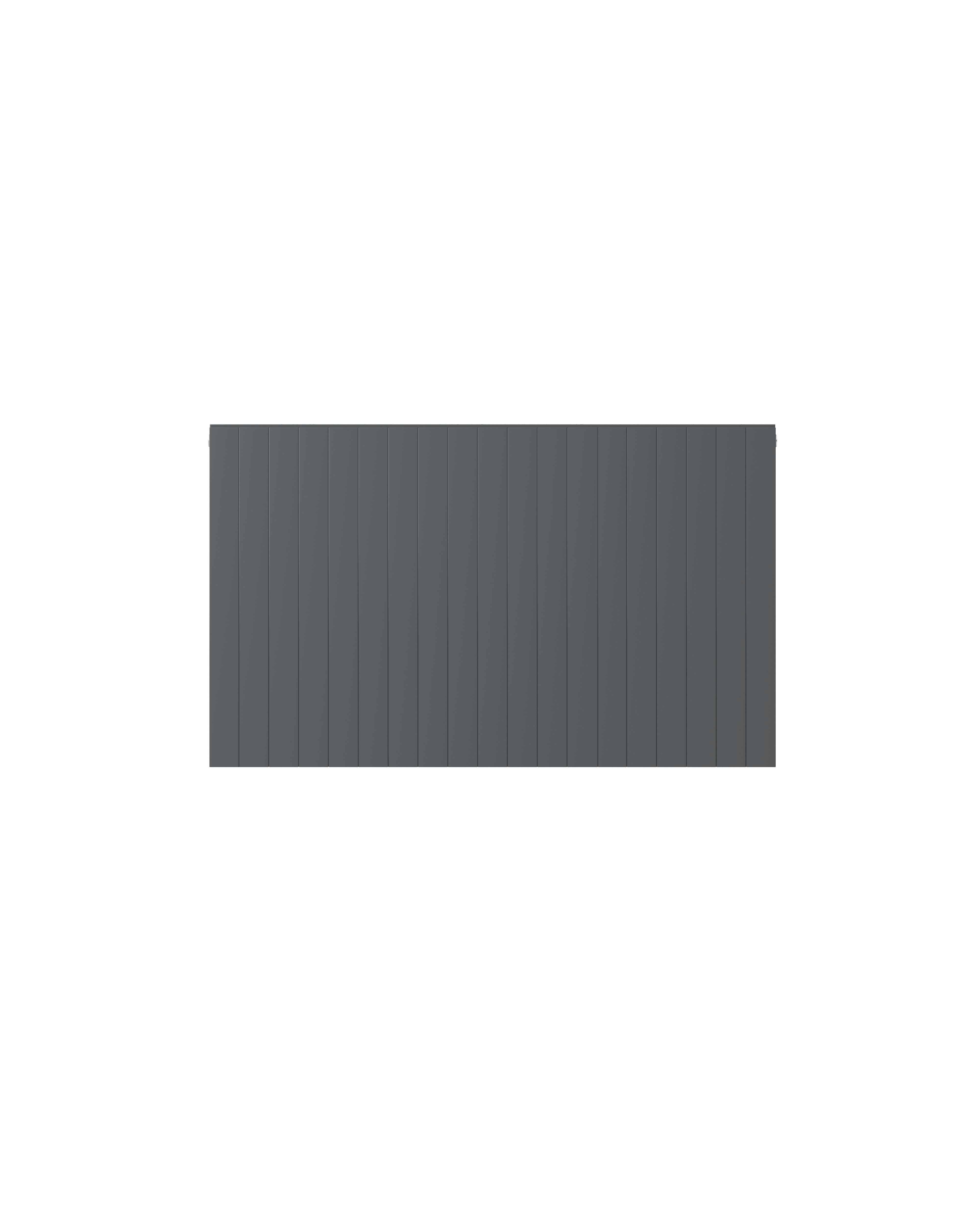

The vertical lines on the Henrad Silhouette add a strong bold appeal to an already attractive designer radiator in either White or Slate grey.





Technical Information

Henrad combines the most sophisticated production resources in Europe with substantial investment in testing and verification of performance data, which has helped us create high output radiators delivering heating performance that exceed expectation. We also want to exceed expectations when it comes to customer service, and our experts are on hand to support and understand your technical specification needs. All table figures are based on Btu/hr ∆t50 °C product-icon





Guaranteed delivery within 48 hours when your order at your merchants with Henrad Express for only £15 per radiator.

Silhouette - Single Convector Type 11

Height mm Length mm Henrad Code Heat Emissions Watts Heat Emissions Btu/hr Price excl. VAT
300 500 98301105 235 802 £118.79
300 1000 98301110 470 1604 £172.00
300 1500 98301115 705 2405 £238.52
500 400 98501104 298 1018 £123.88
500 600 98501106 448 1527 £137.17
500 700 98501107 522 1782 £152.70
500 800 98501108 597 2036 £163.80
500 900 98501109 671 2291 £179.33
500 1000 98501110 746 2545 £190.43
500 11100 98501111 821 2800 £205.95
500 1200 98501112 895 3054 £217.02
500 1400 98501114 1044 3563 £243.63
500 1600 98501116 1194 4073 £270.27
500 1800 98501118 1343 4582 £296.87
600 400 98601104 348 1187 £129.01
600 600 98601106 522 1781 £155.62
600 700 98601107 609 2078 £171.14
600 800 9860108 696 2375 £182.22
600 900 98601109 783 2672 £197.75
600 1000 98601110 870 2968 £208.85
600 1100 98601111 957 3265 £224.37
600 1200 98601112 1044 3562 £235.47
600 1400 98601114 1218 4156 £262.06
600 1600 98601116 1392 4750 £288.69
600 1800 98601118 1566 5343 £315.30
600 2000 98601120 1740 5937 £341.89
Download Stats

Silhouette - Double Convector Type 22

Height mm Length mm Henrad Code Heat Emissions Watts Heat Emissions Btu/hr Price excl. VAT
300 500 98302205 449 1532 £160.77
300 1000 98302210 898 3064 £227.28
300 1500 98302215 1347 4596 £293.82
500 400 98502204 555 1894 £184.28
500 600 98502206 833 2842 £210.90
500 700 98502207 972 3315 £226.42
500 800 9850208 1110 3789 £237.51
500 900 98502209 1249 4262 £253.04
500 1000 98502210 1388 4736 £264.14
500 1100 98502211 1527 5210 £279.66
500 1200 98502212 1666 5683 £290.73
500 1400 98502214 1943 6630 £317.34
500 1600 98502216 2221 7577 £343.96
500 1800 98502218 2498 8525 £370.56
600 400 98602204 640 2185 £202.69
600 600 98602206 961 3278 £229.32
600 700 98602207 1121 3824 £244.84
600 800 98602208 1281 4370 £255.93
600 900 98602209 1441 4917 £271.46
600 1000 98602210 1601 5463 £282.56
600 1100 98602211 1761 6009 £298.06
600 1200 98602212 1921 6555 £309.14
600 1400 98602214 2241 7648 £335.78
600 1600 98602216 2562 8740 £362.40
600 1800 98602218 2882 9833 £388.99
600 2000 98602220 3202 10925 £415.61
Download Stats

Silhouette Concept - Single Convector Type 11

Height mm Length mm Henrad Code Heat Emissions Watts Heat Emissions Btu/hr Price excl. VAT
600 400 50601104 348 1187 £209.54
600 600 50601106 522 1781 £236.13
600 700 50601107 609 2078 £251.65
600 800 50601108 696 2375 £262.74
600 900 50601109 783 2672 £278.28
600 1000 50601110 870 2968 £289.38
600 1100 50601111 957 3265 £304.90
600 1200 50601112 1044 3562 £315.98
600 1400 50601114 1218 4156 £342.58
Download Stats

Silhouette Concept - Double Convector Type 22

Height mm Length mm Henrad Code Heat Emissions Watts Heat Emissions Btu/hr Price excl. VAT
600 400 50602204 640 2184 £283.25
600 600 50602206 961 3279 £309.83
600 700 50602207 1121 3825 £325.36
600 800 50602208 1281 4371 £336.46
600 900 50602209 1441 4917 £351.99
600 1000 50602210 1601 5463 £363.08
600 1100 50602211 1761 6009 £378.60
600 1200 506202212 1921 6554 £389.68
600 1400 50602214 2241 7646 £416.34
Download Stats
Btu/hr @ ΔT50°C
