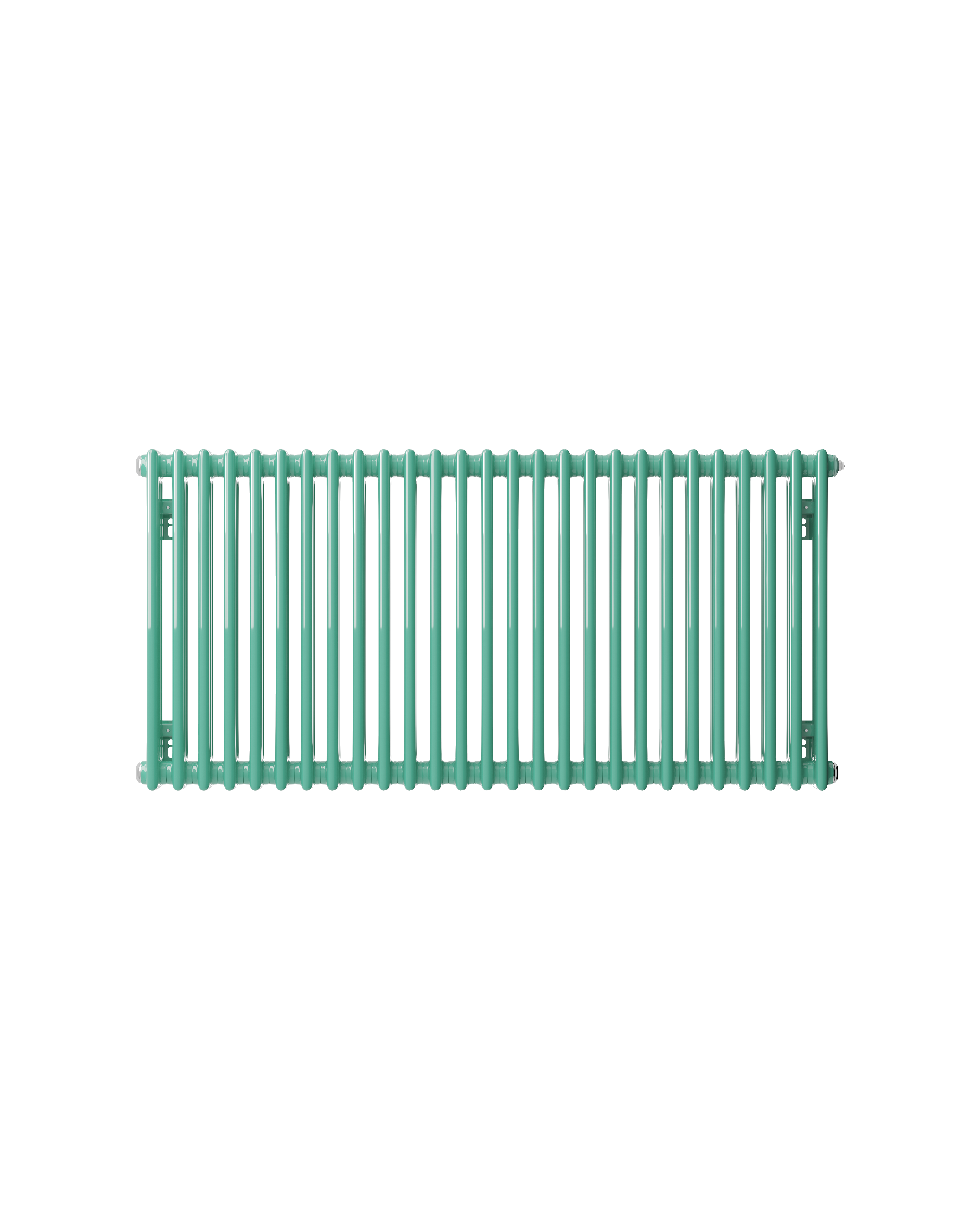

Product Information

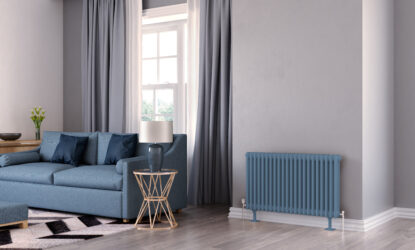

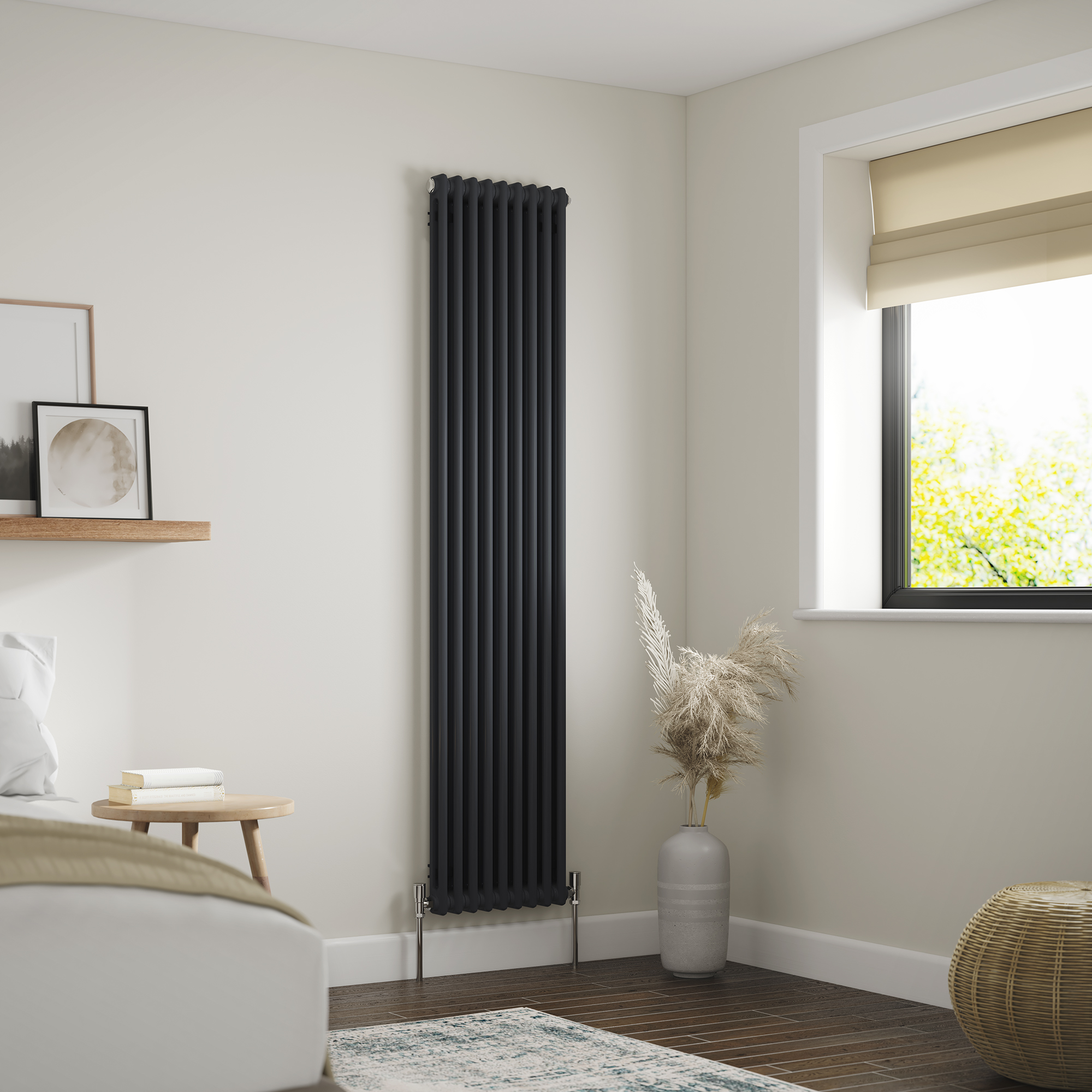

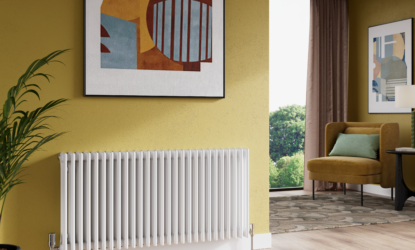

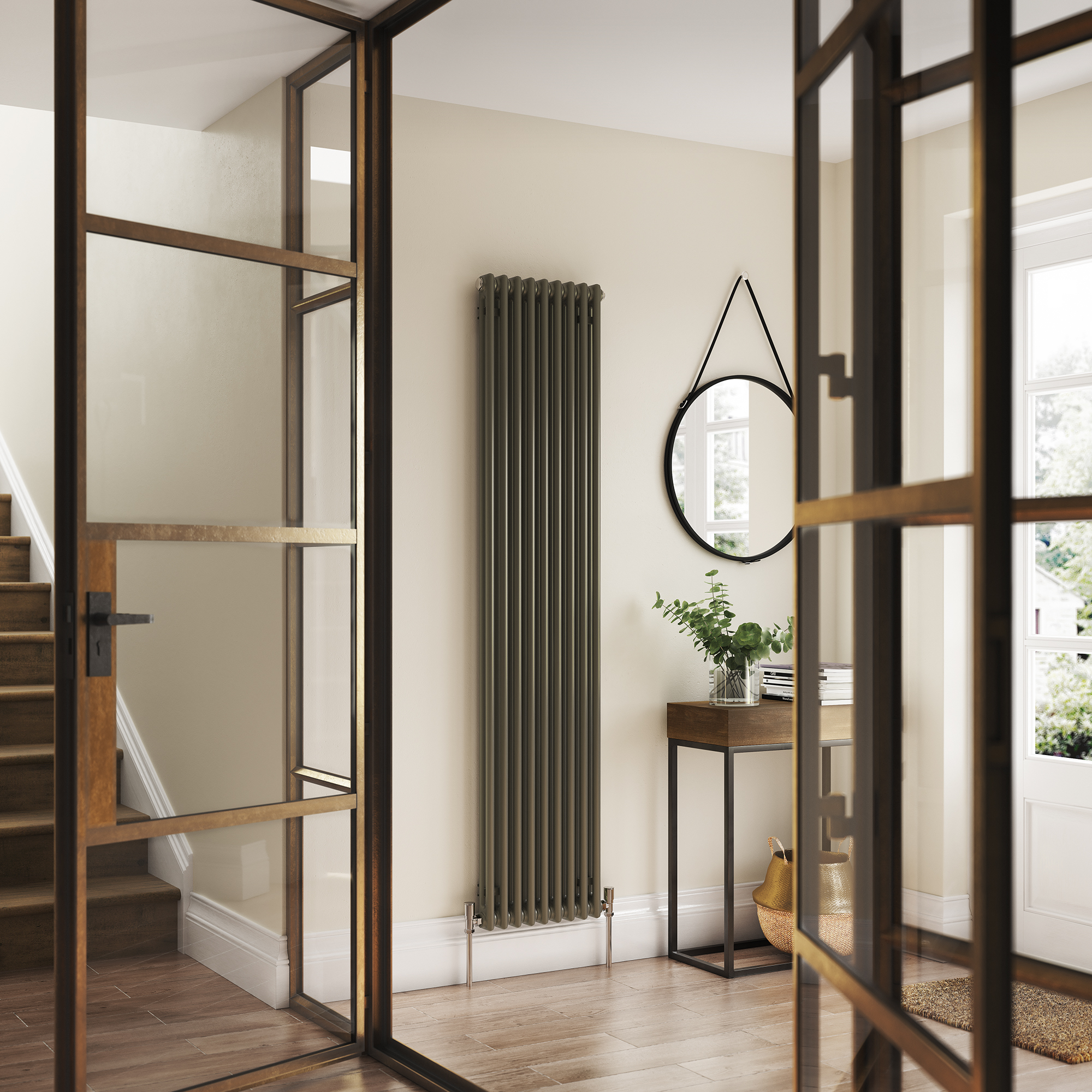

The most modern execution of a traditional concept, this classic style brings innovations and reliability to a high performance design. Vertical and horizontal options offer a modern alternative to a traditional panel radiator, and will enhance both contemporary and traditional settings.

Strictly controlled independent laboratory testing ensures that the Henrad Column Range radiators are guaranteed to perform to a maximum working pressure of 116 psi (8 bar), and conform to BS EN 442, the European Standard for radiators.

Every radiator comes wrapped in robust, practical packaging that will keep the product pristine, right through to handover. Protective through storage and transit, the new packaging design also allows for installation prior to removal.

Technical Information

Henrad combines the most sophisticated production resources in Europe with substantial investment in testing and verification of performance data, which has helped us create high output radiators delivering heating performance that exceed expectation.

We also want to exceed expectations when it comes to customer service, and our experts are on hand to support and understand your technical specification needs.

All table figures are based on Btu/hr ∆t50 °C

product-icon

Column 2

Height mm Length mm Henrad Code Heat Emissions Watts Heat Emissions Btu/hr Price excl. VAT
500 624 313012 494 1685 £188.47
500 854 313013 684 2332 £257.51
500 1038 313014 836 2851 £312.73
500 1268 313015 1026 3499 £381.77
600 624 313028 582 1986 £204.19
600 854 313029 806 2750 £259.16
600 1038 313030 986 3361 £314.14
600 1268 313031 1210 4125 £408.39

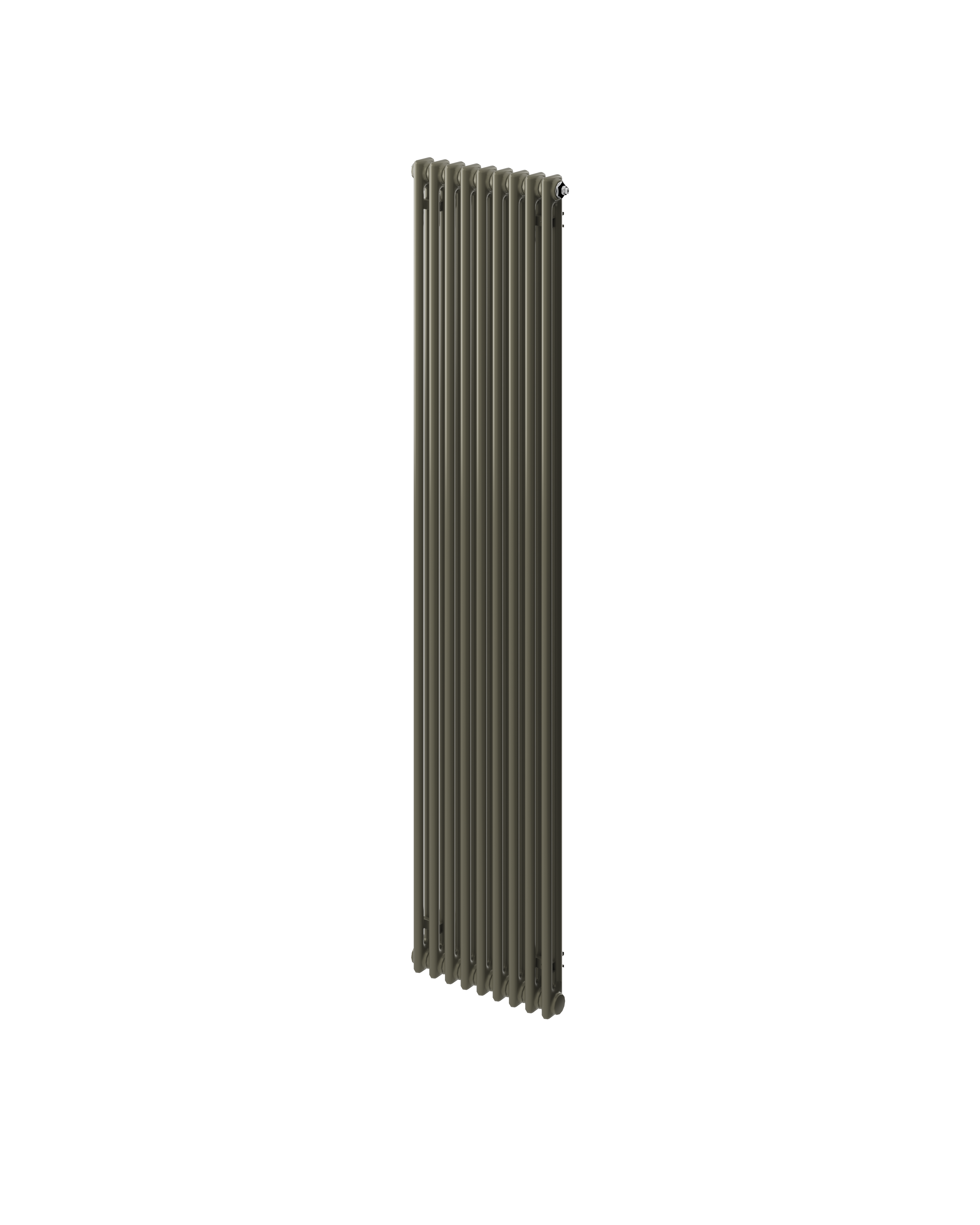

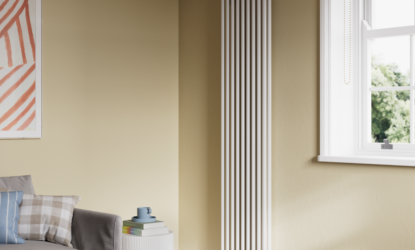

Column 2 Vertical

Height mm Length mm Henrad Code Heat Emissions Watts Heat Emissions Btu/hr Price excl. VAT
1800 348 313054 896 3055 £251.32
1800 440 313055 1152 3928 £329.86
2000 348 313056 994 3390 £259.16
2000 440 313057 1278 4358 £337.70
2500 348 313058 1260 4297 £284.63
2500 440 313059 1620 5524 £392.73

Column 3

Height mm Length mm Henrad Code Heat Emissions Watts Heat Emissions Btu/hr Price excl. VAT
300 440 313000 298 1016 £176.11
300 624 313001 430 1467 £217.82
300 854 313002 596 2032 £276.31
300 1038 313003 728 2483 £325.04
300 1268 313004 894 3048 £394.25
300 1452 313005 1026 3499 £472.78
300 1866 313006 1324 4515 £630.59
500 440 313016 464 1584 £204.19
500 624 313017 671 2287 £242.12
500 854 313018 929 3167 £267.01
500 1038 313019 1135 3871 £353.42
500 1268 313020 1393 4751 £455.50
500 1452 313021 1600 5455 £486.93
500 1866 313022 2064 7038 £612.57
600 440 313032 547 1866 £219.90
600 624 313033 790 2695 £251.32
600 854 313034 1094 3732 £290.59
600 1038 313035 1338 4561 £361.27
600 1268 313036 1642 5598 £463.36
600 1452 313037 1885 6427 £502.62
600 1866 313038 2432 8293 £644.01
750 854 313044 1341 4573 £361.27
750 1038 313045 1639 5589 £424.09
750 1268 313046 2012 6859 £549.75
750 1452 313047 2310 7875 £644.01
750 1866 313048 2980 10162 £828.22

Column 4

Height mm Length mm Henrad Code Heat Emissions Watts Heat Emissions Btu/hr Price excl. VAT
300 440 313007 381 1298 £222.40
300 624 313008 550 1875 £242.58
300 854 313009 761 2596 £306.94
300 1038 313010 931 3173 £380.81
300 1268 313011 1142 3895 £476.58
500 440 313023 615 2096 £235.62
500 624 313024 888 3028 £252.33
500 854 313025 1229 4192 £329.86
500 1038 313026 1503 5124 £408.39
500 1268 313027 1844 6288 £494.78
600 440 313039 730 2489 £249.71
600 624 313040 1054 3595 £267.01
600 854 313041 1460 4978 £329.86
600 1038 313042 1784 6084 £408.39
600 1268 313043 2190 7467 £494.78
750 440 313049 900 3069 £293.85
750 624 313050 1300 4433 £314.14
750 854 313051 1800 6138 £408.39
750 1038 313052 2200 7502 £486.93
750 1268 313053 2700 9207 £612.57
Btu/hr @ ΔT50°C
