Product Information

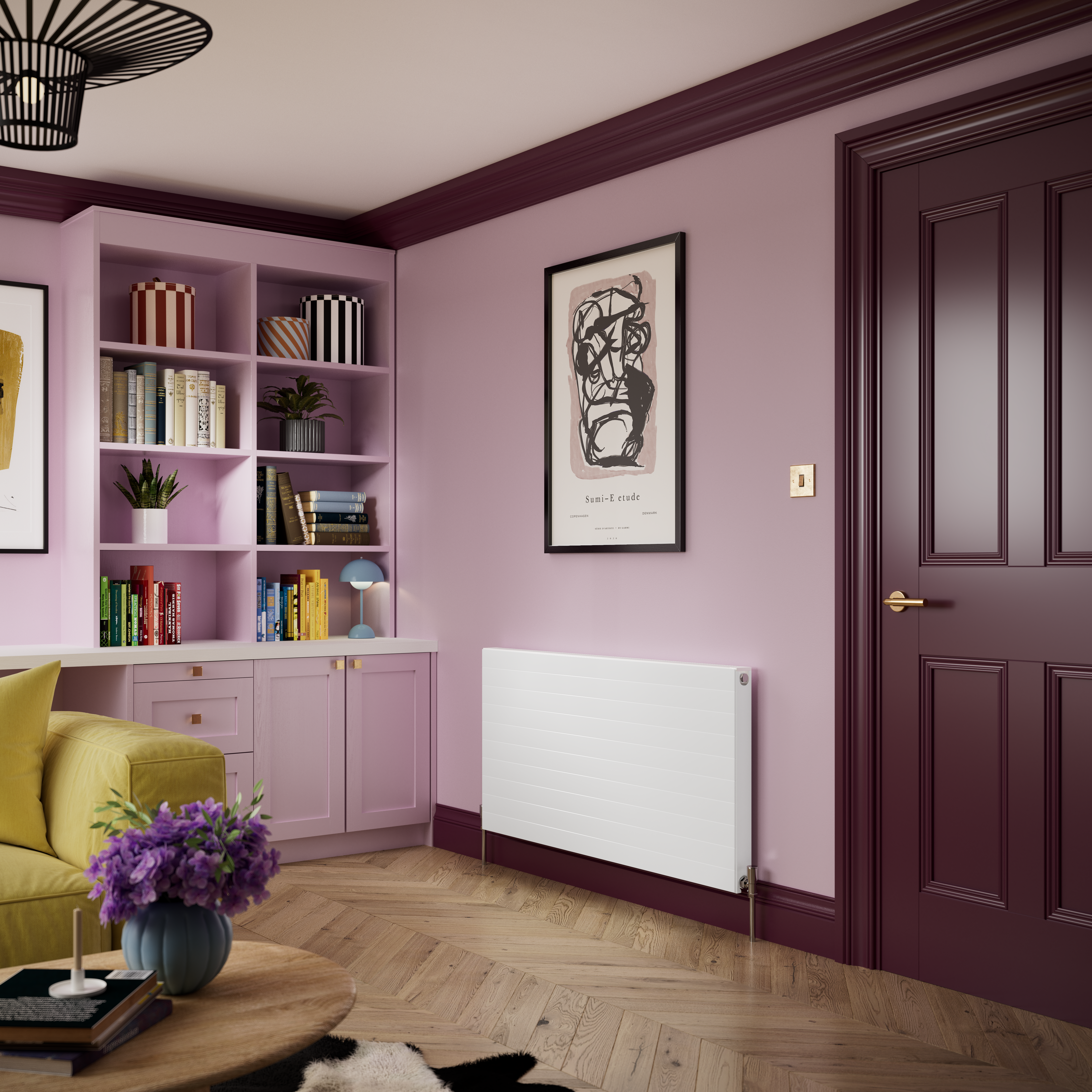

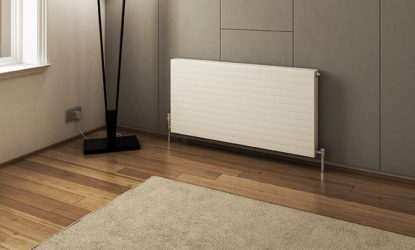

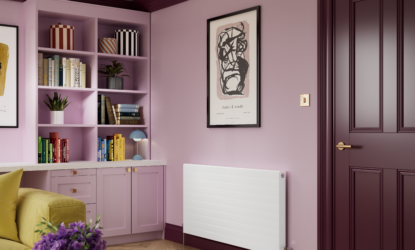

With its flat front panel featuring pleasing horizontal lines the Henrad Everest Line radiator offers contemporary good looks, adding a new dimension to any room.

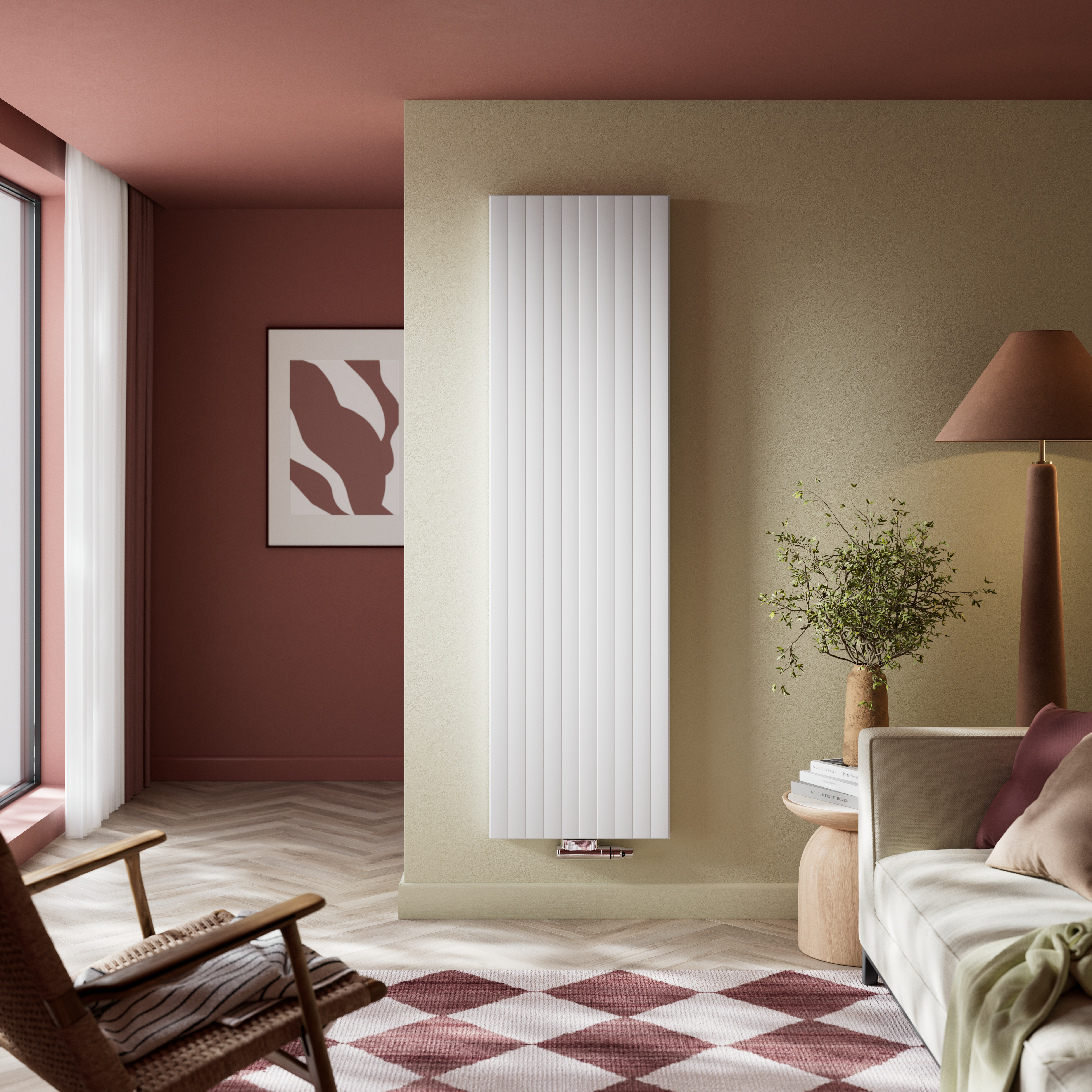

The Henrad Alto Line incorporates all the features of the Henrad Everest Line but with a vertical line design.

Strictly controlled independent laboratory testing ensures that the Henrad Everest Line & Alto Line radiators are guaranteed to perform to a maximum working pressure of 116 psi (8 bar), and conform to BS EN 442, the European Standard for radiators.

Every radiator comes wrapped in robust, practical packaging that will keep the product pristine, right through to handover. Protective through storage and transit, the new packaging design also allows for installation prior to removal.

Technical Information

Henrad combines the most sophisticated production resources in Europe with substantial investment in testing and verification of performance data, which has helped us create high output radiators delivering heating performance that exceed expectation.

We also want to exceed expectations when it comes to customer service, and our experts are on hand to support and understand your technical specification needs.

All table figures are based on Btu/hr ∆t50 °C

product-icon

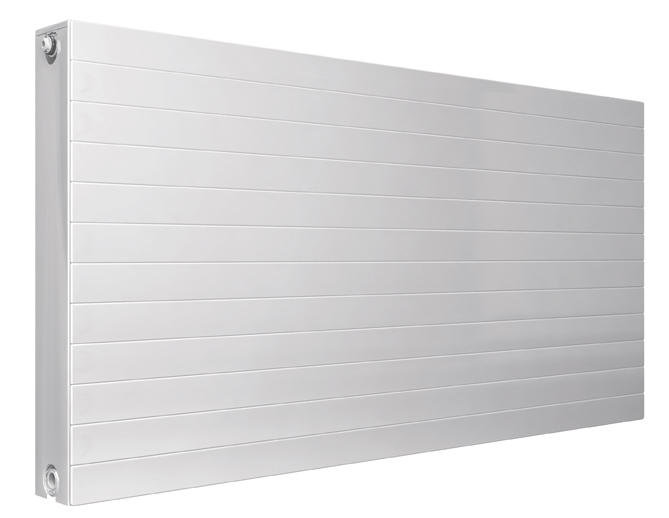

Everest Line - Single Convector Type 11

Height mm Length mm Henrad Code Heat Emissions Watts Heat Emissions Btu/hr Price excl. VAT
300 500 3031105 235 802 £68.60
300 1000 3031110 469 1601 £99.34
300 1500 3031115 704 2401 £137.77
500 400 3051104 298 1017 £71.55
500 600 3051106 448 1530 £79.23
500 800 3051108 598 2040 £94.61
500 1000 3051110 746 2545 £109.98
500 1200 3051112 897 3060 £125.36
500 1400 3051114 1046 3570 £140.73
500 1600 3051116 1194 4075 £156.10
500 1800 3051118 1343 4584 £171.47
600 400 3061104 348 1188 £74.51
600 600 3061106 522 1781 £89.88
600 800 3061108 696 2375 £105.25
600 1000 3061110 870 2968 £120.63
600 1200 3061112 1044 3562 £136.00
600 1400 3061114 1219 4158 £151.37
600 1600 3061116 1392 4751 £166.74
600 1800 3061118 1566 5345 £182.11
600 2000 3061120 1741 6939 £197.48

Everest Line - Double Convector Type 22

Height mm Length mm Henrad Code Heat Emissions Watts Heat Emissions Btu/hr Price excl. VAT
300 500 3032205 465 1587 £92.86
300 1000 3032210 929 3171 £131.28
300 1500 3032215 1394 4796 £169.71
500 400 3052204 555 1894 £106.44
500 600 3052206 833 2842 £121.81
500 800 3052208 1110 3787 £137.18
500 1000 3052210 1388 4736 £152.56
500 1200 3052212 1666 5684 £167.93
500 1400 3052214 1943 6630 £183.30
500 1600 3052216 2222 7580 £198.67
500 1800 3052218 2499 8526 £214.04
600 400 3062204 640 2184 £117.08
600 600 3062206 961 3279 £132.45
600 800 3062208 1281 4371 £147.83
600 1000 3062210 1601 5463 £163.20
600 1200 3062212 1921 6554 £178.57
600 1400 3062214 2241 7646 £193.95
600 1600 3062216 2563 8744 £209.32
600 1800 3062218 2883 9836 £224.69
600 2000 3062220 3203 10928 £240.06

Alto Line - Double Convector Type 22

Height mm Length mm Henrad Code Heat Emissions Watts Heat Emissions Btu/hr Price excl. VAT
1600 300 3162203 693 2365 £302.75
1600 500 3162205 1155 3941 £318.12
1800 500 3182205 1266 4320 £333.49
Btu/hr @ ΔT50°C
